Pin Rack Hose 1 1/2 inch all polyester single jacket fire hose specifically designed for interior fire fighting use, pin racks, and/or fire cabinets in buildings and plants. NFPA 1961 standards shall be observed in production and assembly to insure quality and durability. Rack hose is also known as cabinet hose and reel hose. This product includes pin rack, hose, brass angle valve, rack nipple, rack nozzle, cadmium plated escutcheon.

Brass NH couplings are standard (aluminum available). Brass and aluminum female couplings have two rocker lugs. Hose comes pre-folded and is for emergency fire fighting only.

This hose is not for wash-down duties or any other multi-use application; please see our single jacket, double jacket or rubber covered hose for other applications.

Due to dated nature of this hose returns are not accepted on this product.

Includes

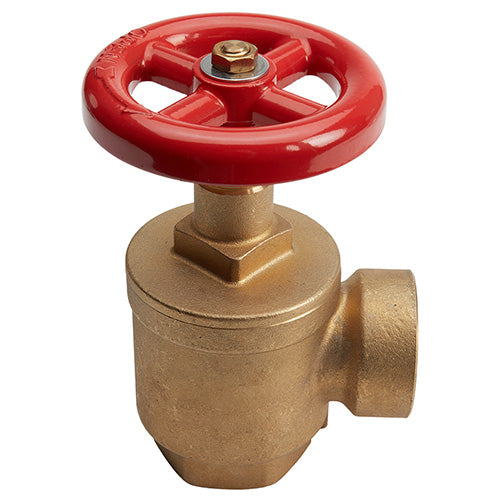

• UL 300 PSI brass angle valve: 1 1/2 inch NPT Female Inlet x 1 1/2 inch NPT Female Outlet
• Brass rack nipple: 1 1/2 inch NPT Male x 1 1/2 inch NH / NST Male
• Semi-automatic fire hose pin rack
• Capacity: 100 feet
• UL/FM Brass 1 1/2 inch NH/NST rack nozzle
• Cadmium plated escutcheon
• Length of 1 1/2 inch pin rack hose with brass NH / NST threaded couplings

Applications

• Interior firefighting
• Apartment buildings
• Office buildings
• Manufacturing Plants

Number of Folds (Approximately)

• 50’ – 12 folds
• 75’ - 19 folds
• 100’ – 25 folds
• 125’ – 27 folds

Test Ratings (Water Only With Expansion Ring Couplings)

• Service Pressure (A 3-minute hydrostatic test conducted by users on in-service hose to determine suitability for continued service)
• Proof Test Pressure (A pressure equal to a least two times the service test pressure)

Replacement Instructions

• Remove existing nozzle
• Unscrew female coupling from pin rack nipple
• Unscrew pin rack nipple
• Remove old pin rack with hose
• Remove valve
• Add new cadmium plated escutcheon
• Add new valve
• Install new pin rack with hose
• Screw in new pin rack nipple
• Attach female coupling to pin rack nipple
• Attach nozzle

NH / NST: The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST.

• The female side of a NH / NST coupling will only connect to a male NH / NST connection
• The male side of a NH / NST coupling will only connect to a female NH / NST connection

NPSH: National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings.

• The female side of a NPSH coupling will only connect to a male NPT pipe or a male NPSH connection
• The male side of a NPSH coupling will only connect to a female NPSH connection
• It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.

NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As its name implies this is a tapered thread so that the outside diameter of the male (ODM) gets smaller towards the end of the fitting and the inside diameter of the female narrows with depth. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket.

Limited 1-Year Warranty

We will replace any fire hose with manufacturer defects in material and workmanship. All warranty claims must be returned to us for inspection before we determine a solution.

Our warranty does not cover gaskets, shipping cost, cosmetic damages, normal wear-and-tear, improper use or chemical damage.

Fire hoses purchased for use at Fire Training Facilities will have a 90-day Manufacturer Defect warranty only.

Upon receipt of the returned goods, hoses will be subject to inspection and testing.

Should it be determined that the hose is covered by warranty, it will be repaired or replaced.
